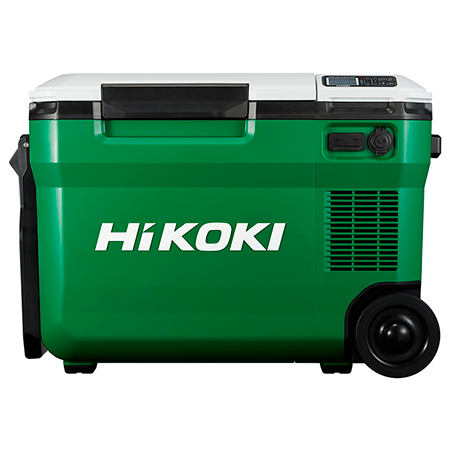

18V Cordless Cooler and Warmer Storage

18V

UL18DBA

Specifications and others

  • Runtime per Charge
  • Specifications
  • Leaflet(PDF)

Runtime per Charge*

Work Ah Runtime per Charge

* The values are shown for reference purposes and may vary according to materials and conditions.

Specifications

Battery Voltage 18V
Drill Chuck
Capacity Mild Steel
Soft Wood
Wood Screw (D x L)
Machine Screw
Max Torque*1 Hard
Soft
No Load Speed High
Low
Overall Head Length
Weight*2
Standard Accessories*4

  • Cool and Warm modes
    Two temperatures (maximum temperature difference up to 60°C) can be set by dividing the storage into two rooms.

  • 25L Large Capacity
    Capable of holding 6 x 1.5-Liter bottles or 15 x 500mL bottles.

  • Powered by three power supplies
    UL18DBA can be powered by a 18V or MULTI VOLT battery, household power supply or in-car 12V/24V power supply.

Explanatory image of Product features and specifications. Width 653mm x height 450mm. Control Panel: 17 stage temperatures setting from -18°C to 60°C. DC 12V Output Socket: Can be used as a power supply for 12V devices. 2 USB Ports: For charging portable devices. Carrying handle and 5 inch wheels: For easy carrying and transportation.

Versatile for All Seasons

This cooler and warmer storage UL18DBA has both cooling and warming functions for use all year round in a wide variety of activities.

Jobsites
Leisure Activities
Sports
  • The images of Japanese model are used for demonstration purposes.

Cool and Warm Modes

  • The temperatures (maximum temperature difference up to 60°C) can be set by dividing the storage into two rooms, with 17 stage temperature settings for adjusting temperatures from -18°C to 60°C.

    Refrigeration and insulation: An image of a partition plate set at 0°C on the left side and 60°C on the right side. Freezing and refrigeration: An image with a partition plate set at -18°C on the left side and 5°C on the right side.

Convenient DC 12V Car Power Socket and USB Port

The model UL18DBA has a DC 12V output socket and two USB ports (USB-A and USB-C)for charging 12V or portable devices.

Compatible with 3 power sources

  • This cooler and warmer storage UL18DBA can be powered by a 18V or MULTI VOLT battery, household power supply or in-car 12V/24V power supply.

    AC Power Plug

    In-car Power Supply

    Battery

  • The image of Japanese model are used for demonstration purposes.

Recharging batteries during operation

  • The batteries can be conveniently recharged during operation when this cooler and warmer storage is plugged into an electrical outlet or a DC 12/24V car power outlet.

Bright LED Lights

  • The model UL18DBA has two bright LED lights for better visibility in dark areas.

Convenient Drain Cock

  • For easy drawing off water after cleaning.

    • The image of Japanese model is used for demonstration purpose.

Specifications

Voltage18V
Power SupplyBatteryBSL18 18V Slide Type, MULTI VOLT
AC AdapterHousehold Power Supply
DC CordDC 12V / 24V (In-car power supply)
Cooling SystemCompressor (Refrigerant gas: R1234yf, 33g)
Heating SystemWire heater
Temperature Settings-18°C or -15°C - 60°C in 5°C increments (When in 2 Zone mode, max. set temperature difference: 60°C)
LED LightProvided
Number of Batteries That Can be Installed2
Charging time at ambient temperature 20°C
(for one battery)*1		Approx. 3hours and 40minutes with BSL36B18 battery (sold separately)
USB OutputUSB-A5V / 2.4A
USB-C5V / 3A, 9V / 2.2A
12V Output*212V / 10A
Dimensions (L x W x H)340 x 653 x 450mm
Weight15.8kg without battery
Standard accessories*3AC adapter, Car cord, Shoulder belt, Partition, Clear Tray
  1. Varies depending on the type of battery, charging conditions, and usage environment. The charging time may be longer when the battery is charged during cooling, warming, or using the USB output port.
  2. 12V output is output from the battery only.
  3. Standard accessories vary by country or area.
  • Please contact local dealers for product availability and product details.
