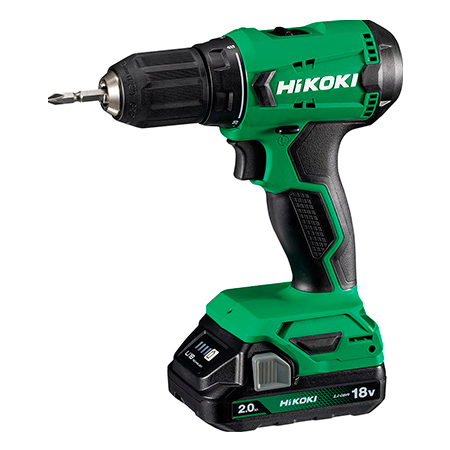

18V Cordless Driver Drill
18VLi-ion Battery
DS18DA
Specifications and others
- Runtime per Charge
- Specifications
- Leaflet(PDF)
Runtime per Charge*
| Work | Ah | Runtime per Charge | ||
|---|---|---|---|---|
| Wood Screws | . | ⌀4.1 x 38mm Wood screws into lauan without pilot holes | 2.0Ah | Approx. 700 Screws |
| Drill Bit | . | Wood Drilling ⌀9 x 30mm holes into lauan | 2.0Ah | Approx. 530 Holes |
| Drill Bit | . | Metal Drilling ⌀3.5 x 1.6mm holes into steel | 2.0Ah | Approx. 620 Holes |
* The values are shown for reference purposes and may vary according to materials and conditions.
Specifications
| Battery Voltage | 18V | |
| Drill Chuck | ||
| Capacity | Mild Steel | 13mm |
| Soft Wood | 36mm | |
| Wood Screw (D x L) | 6 x 75mm | |
| Machine Screw | 6mm | |
| Max Torque*1 | Hard | 50Nm |
| Soft | 18Nm | |
| No Load Speed | High | 0 - 1,400/min |
| Low | 0 - 350/min | |
| Overall Head Length | ||
| Weight*2 |
1.3 - 1.9kg |
|
| Standard Accessories*4 | 2 Batteries (BSL1820M), Charger (UC18YKSL), Driver Bit, Battery Cover, Carrying Case | |
- Weight according to EPTA-Procedure 01/2014. The weight differs depending on the attached battery. The heaviest weight is measured with the BSL36B18 battery (sold separately).
- Included accessories vary by country or area.
Easy to Use in Tight Spaces
18V Performance in a Compact Design
Compact & Lightweight
BSL1820M
2.0Ah Lithium-ion Battery with Remaining Battery Indicator
Built-in LED Light
The light stays on while the trigger is pulled.
2 Speed Gear
20 Stage Clutch
