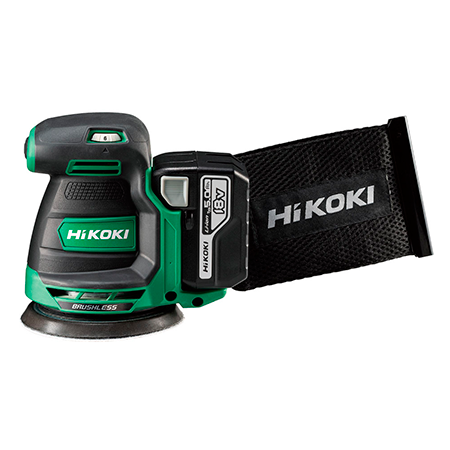

Cordless Random Orbit Sander
18V Li-ion battery
SV1813DA
Specifications and others
- Runtime per Charge
- Specifications
- Leaflet(PDF)
Runtime per Charge*
| Work | Ah | Runtime per Charge | ||
|---|---|---|---|---|
| Workpiece: Pine Wood / Pressing Load: 19.6N (2kgf) Sanding Paper: A-P80 | Nil | Nil | 5.0Ah | Approx. 45min |
* The values are shown for reference purposes and may vary according to materials and conditions.
Specifications
| Battery Voltage | 18V | |
| Drill Chuck | ||
| Capacity | Mild Steel | |
| Soft Wood | ||
| Wood Screw (D x L) | ||
| Machine Screw | ||
| Max Torque*1 | Hard | |
| Soft | ||
| No Load Speed | High | |
| Low | ||
| Overall Head Length | ||
| Weight*2 | ||
| Standard Accessories*4 | ||
Greater Performance than Corded
Sanding Performance*1
Workpiece: Pine Wood / Pressing Load: 19.6N (2kgf) / Sanding Time: 5 minutes / Sanding Paper: A-P80
- The value shown is for reference purposes and may vary according to the battery status and other operating conditions.
- Vs. the SV13YB corded random orbit sander. The value is shown for reference purposes and may vary according to the state of battery charge and other operating conditions.
High Dust Extraction Rate
Approx. 80% Dust Extraction
Dust-Seal Switch
Helps protect against dust for longer switch life
Dust Extraction Adapters
Available for multiple dust extractors
Variable Speed Dial
Allows for setting the ideal sanding speed for your application
Speed Settings for Different Applications
| Material | Grit Size | Dial | ||
|---|---|---|---|---|
| Rough | Fine | |||
| Paint | Sanding | 180 | 400 | 3 - 6 |
| Repairing Scratches and Rust Spots | 120 | 240 | 2 - 4 | |
| Stripping | 40 | 80 | 2 - 4 | |
| Wood | Soft Wood | 60 - 80 | 240 | 3 - 6 |
| Hard Wood | 60 | 180 | 3 - 5 | |
| Veneer | 240 | 320 | 2 - 4 | |
| Metal | Aluminium | 80 | 240 | 2 - 4 |
| Steel | 60 | 240 | 3 - 6 | |
| Stainless Steel | 120 | 240 | 3 - 6 | |
- The chart below is just for reference. Adjust the speed accordingly to achieve the desired results.
