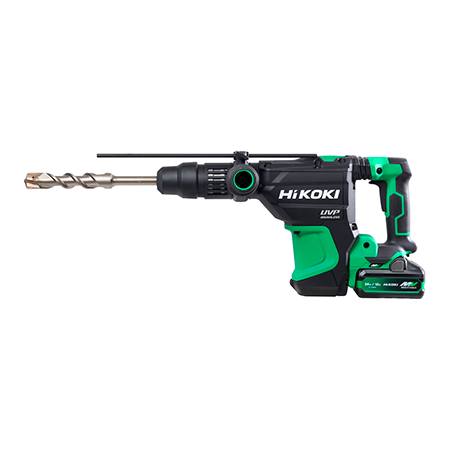

MULTI VOLT(36V) Cordless Rotary Hammer
36V Li-ion Battery
DH3640DA
Specifications and others
- Runtime per Charge
- Specifications
- Leaflet(PDF)
Runtime per Charge*
| Work | Ah | Runtime per Charge |
|---|
* The values are shown for reference purposes and may vary according to materials and conditions.
Specifications
| Battery Voltage | 36V | |
| Drill Chuck | ||
| Capacity | Mild Steel | |
| Soft Wood | ||
| Wood Screw (D x L) | ||
| Machine Screw | ||
| Max Torque*1 | Hard | |
| Soft | ||
| No Load Speed | High | |
| Low | ||
| Overall Head Length | ||
| Weight*2 | ||
| Standard Accessories*4 | ||
Lightweight and Class-leading Drilling and Demolishing performance*1
The lightest Rotary Hammer in its class (0.5 kg lighter than the current model*2) allows for increased maneuverability and less user fatigue.
Delivers powerful impact energy of 9.2J*3 for 17% faster drilling speed and 35% higher demolishing performance than the current model*2.
- As of July 1 2023, among 40mm class cordless rotary hammers made by leading power tool manufacturers. (Survey by Koki Holdings)
- Compared with HiKOKI DH36DMA.
- Impact energy according to EPTA-Procedure.
New Low Vibration Mechanism and Low Vibration Handle
17% lower vibration than the current model*
The new dynamic vibration absorber and low vibration handle significantly reduce vibrations for less user fatigue and improved operability.
- Compared with HiKOKI DH36DMA.
Convenient Continuous Operation Function(only available for Hammering mode)
Continuous operation button keeps the tool operating even after the trigger switch is released, for less fatigue when chiseling for extended periods.
Continuous operation button
Bright LED Light
A high-brightness LED Illuminates the spot you are working on and turns off 10 seconds after releasing the trigger switch.
Reactive Force ControlAgainst Sudden Overburdening
When the tool bit is suddenly overburdened during operation, the slip clutch works or the built-in controller stops the motor output before the entire tool jerks.
CautionDepending on the operating conditions, the Reactive Force Control function may not work or provide the specified performance. Please make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.
4-Step Push Button Rotation Speed Selection
Four power levels of impact and rotation speed to match versatile applications and improve productivity.
| Display Lamp |  |  |  |  |
|---|---|---|---|---|
| No Load Rotation Speed | 250/min | 340/min | 420/min | 500/min |
| Full Load Impact Rate | 1,400/min | 1,900/min | 2,350/min | 2,800/min |
