MULTI VOLT(36V) Cordless Disc Grinders

36V Li-ion Battery

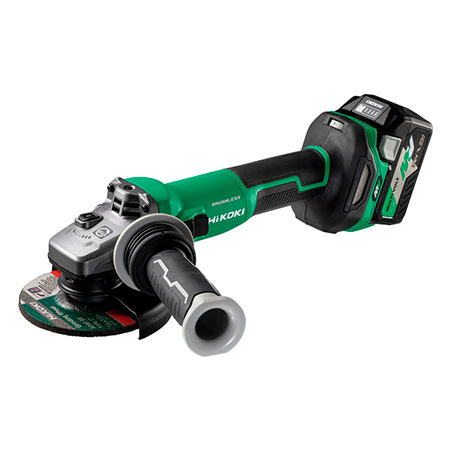

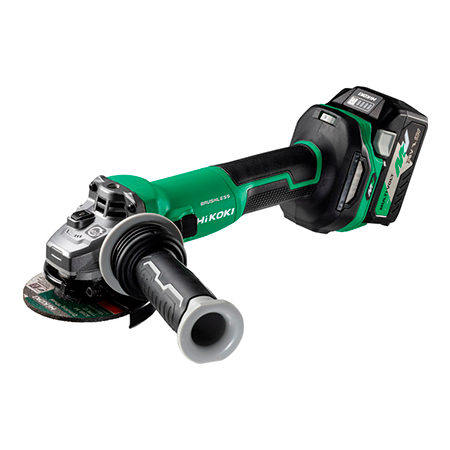

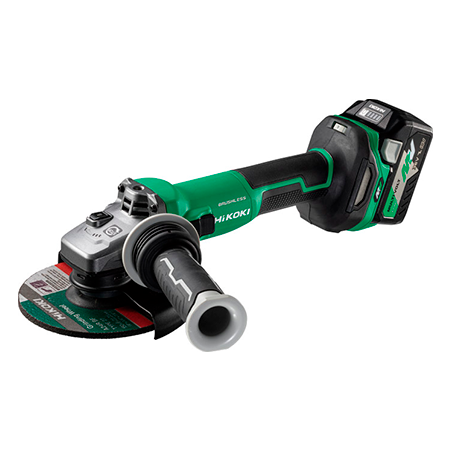

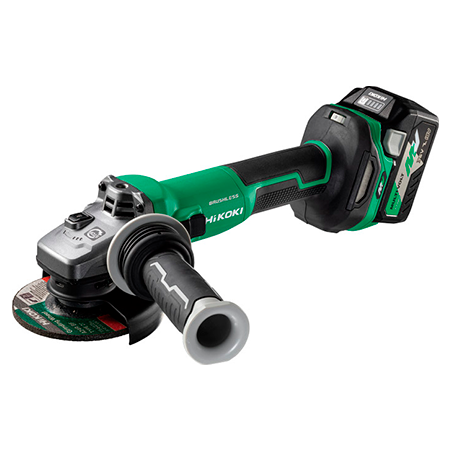

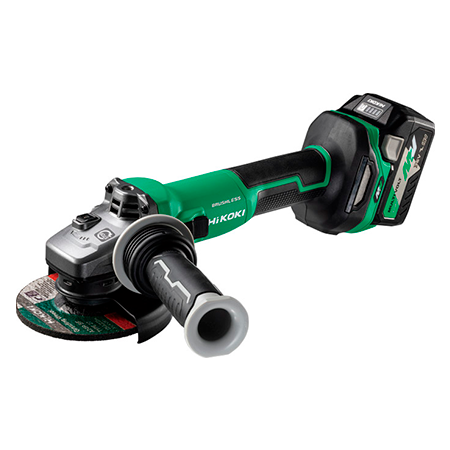

G3610DVE / G3612DVE / G3613DVE / G3613DE / G3615DVE

Specifications and others

  • Runtime per Charge
  • Specifications
  • Leaflet(PDF)

Runtime per Charge*

Work Ah Runtime per Charge

* The values are shown for reference purposes and may vary according to materials and conditions.

Specifications

Battery Voltage
Drill Chuck
Capacity Mild Steel
Soft Wood
Wood Screw (D x L)
Machine Screw
Max Torque*1 Hard
Soft
No Load Speed High
Low
Overall Head Length
Weight*2
Standard Accessories*4

Powerful Grinding with 1,500W Max Output and Excellent Dust Resistance Makes the Toughest Jobs Easier

  • More Power and Higher Overload Capacity

    The optimized motor control provides higher output power and higher overload capacity.

    Max Output*1

    Max output 1500W, approx 20% higher than the Conventional models (G3613DA / G3613DB)

    Overload Capacity*1

    Overload Capacity 118N, approx 1.2x higher than the Conventional models (G3613DA / G3613DB)
  1. The values shown are for reference purposes and may vary according to the workpiece materials and other operating conditions.
  2. G3610DVE / G3612DVE / G3613DVE / G3613DE / G3615DVE
  3. G3612DVE / G3613DVE / G3613DE / G3615DVE

2.5X More Dust Resistant*

Highly Durable Ball Bearings

The ball bearings are less exposed to dust, which lowers the risk of damage.

Dust and Water Resistant Switch

The switch is laser-welded for increased protection against dust and water.

  • Vs.the G3610DA cordless grinder. The figure is for reference only.

Maintenance Free & High Efficiency Brushless Motor

Longer Lifetime

The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments.

No Carbon Brush Replacement Required

There is no hassle and no cost of carbon brush replacement.

Designed for Maximum Ease of Use

  • 'Continue To Run' Function*

    Even after the motor has stopped due to overloading, it gets activated automatically if the load decreases within 1.5 seconds, so users do not have to restart the tool manually.

    • The motor may not automatically restart when the kick-back protection is activated or for other safety reasons. In that case, the tool needs to be turned off and on manually.

  • Small Grip Circumference

    The lightweight and compact body with a slim grip and small head offers easy handling and efficient operation.

    • As of November 2022. Among cordless disc grinders made by leading power tool manufacturers. (Survey by Koki Holdings.)
    Smallest in class* circumference around motor 56mm, 46mm Grip circumference

  • Variable Speed Control with Auto ModeNot applicable to G3613DE

    Variable Speed: Variable speed control allows users to change the rotation speed between 3,200 and 10,000 RPM (G3615DVE: 3,200 - 8,000 RPM) to suit the application.

    Auto Mode: The speed automatically shifts between 5,500 and 10,000 RPM (G3615DVE: 8,000RPM), depending on the load, which results in more effective operation.

    Variable Speed Dial

    Auto Mode Switch

    Auto Mode turns on just by pressing its button.

    Dial Settings and No Load Speeds

    DialNo Load Speed (/min)Use
    G3610DVE
    G3612DVE
    G3613DVE    		G3615DVE
    13,2003,200Dial 1-2:Polishing,Finishing Dial 1-4:Removal of Paint or Coat, Removal of Rust, Removal of Burrs Dial 3-6:Grinding Dial 4-6:Rough Grinding,Cutting
    23,9003,600
    35,3004,600
    47,4005,600
    58,6007,200
    610,0008,000
    A
    Auto mode    		5,5005,500Light Work, Standby State
    10,0008,000Grinding, Cutting

  • Dual LEDs

    Dual LEDs illuminate both sides of the wheel for better visibility.

  • 3 Position Side Handle

    The three-position side handle provides control in multiple positions. Fitting the side handle on top of the tool allows for easy operation in tight spaces.

  • Easy to Maintain Mesh Dust Filter

    An easy to replace mesh filter provides additional protection from dust.

Great Safety Features

  • Kickback Protection System

    Monitors a sudden drop in the motor rotation speed and stops the motor quickly to reduce the reaction force (kickback).

    Warning
    Depending on operating conditions, the Kickback Protection System may not work or provide specified performance. Make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation. Additionally, carefully read "KICKBACK AND RELATED WARNINGS" in the instruction manual.

  • Drop Shut off Function

    When the tool has been dropped, a shock sensor senses the impact and shuts off the motor to prevent accidents. (Not applicable to G3613DE)

  • Restart Protection

    The motor does not restart after the power has been temporarily cut off during operation to avoid accidents.

  • Soft Start

    Allows comfortable operation by reducing the reaction force on start up.

  • Electronic Brake

    Stops the wheel within seconds when the trigger is released, so users can get back to work quickly without wasting time waiting around for the wheel to slow down.

    Warning
    Use only the wheel washer supplied.
